Guitar Role: Guitar as protagonist
Patch Name: “Electric Psyche”
Genre / Scene: American Rock
Approx. Year: 1968
As amplification improved, guitar effect pedals began to appear in music stores, and countercultural experimentation expanded musical boundaries, the guitar became a vehicle for expression, exploration, and sonic identity. Volume, effects, and studio experimentation reshaped expectations of what the instrument could do, as musicians fully broke with traditional music concepts and charged full speed to explore new horizons.
Guitar Role Compass
The guitar is an expressive protagonist. It occupies the foreground, using volume, effects, and dynamics to explore emotion and identity. It, effectively, begins taking on Main Charachter Energy. This marks the birth of the modern lead guitar as a narrative force.
North Star
To transform the guitar into an expressive, exploratory, lead voice capable of both rhythmic grounding and expansive sonic statements.
Latitude & Longitude
Occupying the foreground with expressive dynamics, harmonic color, and spatial presence while still interacting with the rhythm section.
Landmarks
Independent voice -> lead voice
Expands guitar’s emotional and spatial range. The modern concept of the “lead guitarist” is born.
Orientation
Not intended for restraint, subtlety, or purely supportive roles. Seize the spotlight, seize the day.
Pathfinding
Amp + Cab: Loud, clean-to-breaking amp through a full-range cabinet capable of handling high volume
Dirt Source: Amp saturation and early fuzz/distortion devices
Mod: Expressive modulation used as color rather than ornament.
Delay/Reverb: Spatial effects used creatively to extend phrasing and depth.
Benchmarks
NOTE: Noise Suppressor / Gate settings are intentionally omitted. Because noise control is highly dependent on pickups, gain staging, and monitoring context, users are encouraged to place and dial these to taste.

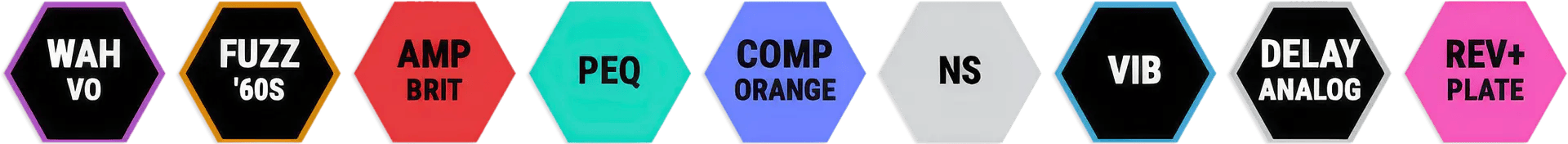

Wah (Vox-tyle): Effect Level: 100; Pedal Position: 50; Pedal Min: 0; Pedal Max: 90; Direct Mix: 0
Fuzz (Fuzz Face-style): Fuzz: 0; Tone: 0; Level: 0; Bottom: 0; Direct Mix: 0
Amp and Cab (Brit Stack w/ 4×12″): Gain: 30; Gain Profile: Medium; Level: 50; Bass: 40; Mid: 45; Treble: 50; Presence: 5; Sag: 1; Resonance: 0; Direct Mix: 0; Mic Type: Dynamic 57; Mic Distance: Long; Mic Position: 5cm; Mic Level: 100
Para EQ (tone shaping): HPF: 80Hz; LPF: 8kHz; Low Shelf: 0dB; High Shelf: 0dB;
Band 1 Freq: 1kHz, Gain: +1dB, Q: 1
Compressor (Vintage-style): Sustain: 20; Attack: 65; Level: 90; Tone: 0; Direct Mix: 33
Vibrato: Rate: 15; Depth: 60; Rise Time: 30; Effect Level: 100; Pre-Delay: 0ms; Trigger: On
Delay (Analog-style): Time: 340ms; Feedback: 5; Effect Level: 10; Direct Level: 100; High Cut: Flat; Mod: 0; Pre Ducking: 0
Reverb (Plate): Time: 2.0s; Tone: 0; Effect Level: 15; Density: 3; Pre-Delay: 30ms; Low Cut: 125Hz; High Cut: 8kHz; Low Damp: 0; High Damp: 0; Pre Ducking: 0; Post Ducking: 0; Direct Level: 100
Ctrl Assignments (footswitch / toggles):
Exp 1: SW: Wah on/off; Exp 1: Wah
Man-Down: Fuzz toggle on/off
Man-Up: Vibrato toggle on/off
CTL 1: Delay toggle on/off
Field Notes
Primary Constraints: Stage volume and emerging effects technology (increasing amplifier power, limited but novel effects, evolving studio techniques)
Extended frequency range and dynamic responsiveness allow the guitar to occupy foreground space without relying solely on volume.
