Guitar Role: Guitar as friction engine
Patch Name: “Monolith”
Genre / Scene: Mid-90’s Alt. Rock
Approx. Year: 1995
As audiences acclimated to extreme density and broad musical landscapes, contrast became the primary expressive tool. Clean and distorted guitars were no longer variations of the same role, but opposing forces within a broader emotional narrative. Friction was harnessed and shaped as a vehicle for emotion and texture.
The Smashing Pumpkins’ “Mellon Collie & the Infinite Sadness” featuring Billy Corgan’s evolving guitar sound serves as an excellent example of the changing guitar role.
Guitar Role Compass
The guitar is a friction/schism engine. Clean and distorted states function as opposing forces, using dynamic range and opposition to create narrative impact. Emotion emerges from building abrasive tension and its release.
North Star
To use contrast and dynamic range as the primary drivers of impact rather than constant saturation.
Latitude & Longitude
Shifting between fragility and mass to shape emotional pacing and scale.
Landmarks
Harmonic mass → friction generator
Introduces narrative through opposition.
Orientation
Not intended for continuous intensity or uniform texture. Channeling the energy created from textural conflict and then releasing it is the goal.
Pathfinding
Amp + Cab: Multiple amp voices or gain states selected for stark contrast rather than cohesion.
Dirt Source: Gain used selectively, often dramatically, rather than continuously. Primary dirt source moves to amp-based, pedal-augmented.
Mod: Minimal; contrast achieved structurally rather than through effects
Delay/Reverb: Used strategically to exaggerate space during quieter passages
Benchmarks
NOTE: Noise Suppressor / Gate settings are intentionally omitted. Because noise control is highly dependent on pickups, gain staging, and monitoring context, users are encouraged to place and dial these to taste.

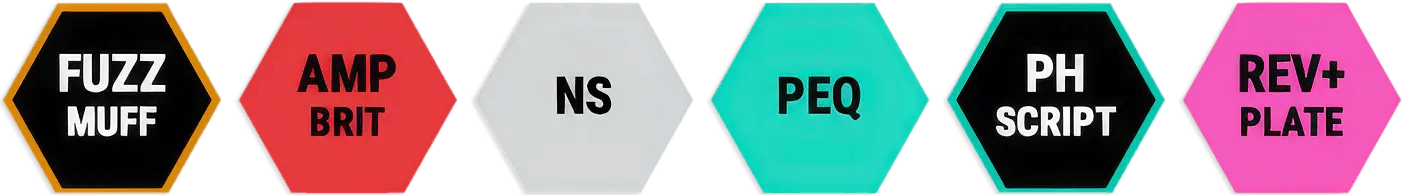

Fuzz (Muff-style): Fuzz: 20; Tone: 5; Level: 80; Bottom: 0; Direct Mix: 0
Amp and Cab (Brit Stack w/ 4×12″): Gain: 40; Gain Profile: Medium; Level: 50; Bass: 55; Mid: 70; Treble: 55; Presence: 10; Sag: 5; Resonance: 0; Direct Mix: 0; Mic Type: Dynamic 57; Mic Distance: Short; Mic Position: Center; Mic Level: 100
Para EQ (tone shaping): HPF: 125Hz; LPF: 6.skHz; Low Shelf: 0dB; High Shelf: 0dB;
Band 1 Freq: 500Hz, Gain: +1dB, Q: 1; Band 2 Freq: 800Hz, Gain: +1dB, Q: 1
Phaser (MXR Script-style): Rate: 1; Depth: 15; Effect Level: 100; Direct Mix: 0
Reverb (Plate): Time: 1.5s; Tone: -5; Effect Level: 15; Density: 5; Pre-Delay: 30ms; Low Cut: 125Hz; High Cut: 8kHz; Low Damp: 0; High Damp: 0; Pre Ducking: 0; Post Ducking: 0; Direct Level: 100
Ctrl Assignments (footswitch / toggles):
Man-Down: Fuzz on/off toggle; Master Memory Level +10 to compensate
Man-Up: Phaser on/off toggle
CTL 1: n/a
Field Notes
Primary Constraints: Dynamic pacing and listener fatigue (extreme shifts must feel North Starional and emotionally meaningful rather than arbitrary)
This patch is NOT meant to target every song on ”Mellon Collie & the Infinite Sadness”. It’s not meant to target any particular song at all. Rather it’s meant to communicate the changing role of the guitar and the sonic spaces and textures it moved into. Billy Corgan’s work during this period simply serves as a great example of this.
Don’t get me wrong, though. I love the Pumpkins. But the point is the changing guitar role, not my Pumpkins fandom.
Careful level matching and EQ separation prevent contrast from becoming arbitrary imbalance, allowing extremes to coexist meaningfully.
Note that the Muff’s role has also changed from being a default texture to provide a sense of mass and weight, to instead being an occasionally applied color in the contrast palette.
