Guitar Role: Guitar as world builder
Patch Name: “Sprawl”
Genre / Scene: Industrial
Approx. Year: 1994
By the mid-1990s, artists had access to extreme density, dramatic contrast, and powerful production tools. The remaining challenge was no longer how to make a moment hit, but how to sustain emotional meaning across longer forms. “Contrast” started to emerge as the key.
Guitar tone, arrangement density, volume, tempo, harmonic content – everything was fair game to create textures that intentionally juxtaposed soft AND loud, pretty AND dissonant, vulnerable AND aggressive.
Albums increasingly functioned as journeys through sonic environments rather than collections of songs.
NOTE: The key to understanding this patch is not to approach it as a traditional Channel A: Clean, Channel B: Lead. Instead, use the two channels together to create connected soundscapes.
Guitar Role Compass
The guitar builds worlds. Multiple roles coexist within a shared emotional environment, prioritizing long-form pacing and cohesion over individual moments. Texture and contrast shape landscape, not spotlight.
North Star
To allow multiple guitar roles to coexist within a shared emotional and tonal world, prioritizing scope and pacing over impact or identity.
Latitude & Longitude
Shaping the emotional terrain of a piece over time, often blending clean and distorted states without foregrounding either.
Landmarks
Wall of thorns & mass → landscape crafting
Extends meaning across time rather than moments to create consistent, connected, complex soundscapes.
Orientation
Not intended for dramatic quiet/loud structures (that’s grunge), riff-centric identity (that’s hard rock/metal), or tonal spotlighting (that’s alt. rock).
Pathfinding
Amp + Cab: Single shared amp platform establishing consistent tonal gravity across clean and distorted states
Dirt Source: Selective, texture-oriented gain used as part of the environment rather than as an event
Mod: Optional subtle modulation used to introduce motion without drawing focus
Delay/Reverb: Reverb treated as environmental glue; space is inhabited, not appended
Benchmarks
NOTE: Noise Suppressor / Gate settings are intentionally omitted. Because noise control is highly dependent on pickups, gain staging, and monitoring context, users are encouraged to place and dial these to taste.

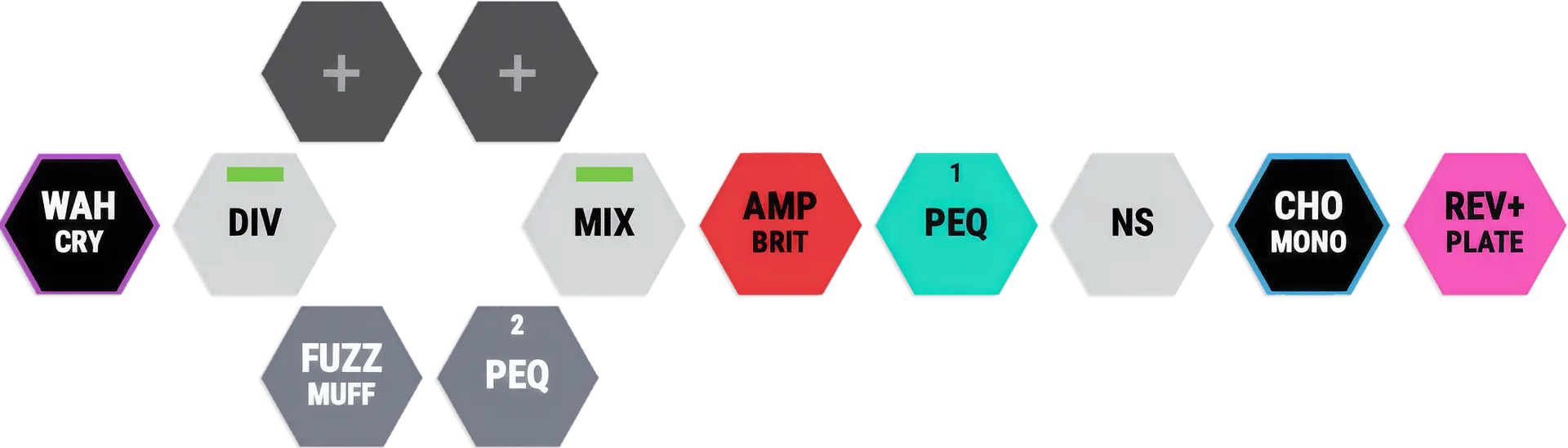

Wah (Crybaby-style): Effect Level: 100; Direct Mix: 0; Pedal Position: 50; Pedal Min: 0; Pedal Max: 90
Signal Chain B:
Fuzz (Muff-style): Fuzz: 40; Tone: -5; Level: 60; Bottom: 0; Direct Mix: 0
Para EQ (tone shaping): HPF: Flat; LPF: Flat; Low Shelf: 0dB; High Shelf: 0dB;
Band 1 Freq: 1kHz, Gain: +1dB, Q: 1
Master Signal Chain
Amp and Cab (Brit Stack w/ 4×12″): Gain: 30; Gain Profile: Low; Level: 64; Bass: 40; Mid: 50; Treble: 50; Presence: 40; Sag: 5; Resonance: 0; Direct Mix: 0; Mic Type: Dynamic 57; Mic Distance: Medium; Mic Position: Center; Mic Level: 100
Para EQ (tone shaping): HPF: 80Hz; LPF: 6.3kHz; Low Shelf: 0dB; High Shelf: 0dB;
Band 1 Freq: 500Hz, Gain: +2dB, Q: 1
Chorus: Rate: 15; Depth: 15; Effect Level: 100; Pre-Delay: 0ms; Waveform: Sine; Low Cut: 31.5Hz; High Cut: 6.3kHz; Direct Mix: 100
Reverb (Plate): Time: 1.5s; Tone: -5; Effect Level: 30; Density: 5; Pre-Delay: 30ms; Low Cut: 80Hz; High Cut: 8kHz; Low Damp: 0; High Damp: 0; Pre Ducking: 0; Post Ducking: 0; Direct Level: 100
Ctrl Assignments (footswitch / toggles):
Exp 1: SW: Wah toggle on/off; Exp 1: Wah
Man-Down: Chorus toggle on/off
Man-Up: Reverb Effect Level +15; Reverb Density: 4
CTL 1: Chain A/B switch (NOT Channel A/B switch)
Field Notes
Primary Constraints: Long-form emotional pacing and role coexistence (multiple guitar behaviors must feel unified rather than episodic, the ‘worldbuilding’ must feel cohesive not ad hoc or accidental)
Shared EQ and spatial treatment across channels prevent clean and distorted states from reading as separate characters, reinforcing a unified emotional world.
If you’re having difficulty conceptualizing how to use a sound like this, check out NIN’s “Hurt” or “The Day The Whole World Went Away” to get a sense of how two textures are used together almost like different sides of the same paint brush.
NOTE: This patch is one of the more “concept patches” in the collection. The way the role was explored was incredibly diverse and featured a wide array of effect and tonal palettes. This patch is not meant to be all inclusive, but a starting place to start to understand how to work within the role.
